BS65 BS75 BS85 BS95 BS110 Sprag Freewheels One Way Bearing Holdback Backstop Cam Clutch

Brand Name : SFT

Model Number : BS85

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Type : Cam clutch

Seals Type : Sealed

Precision Rating : P0

Product name : BS85 one way clutch bearing

Material : GCr15

Drag Torque : 7.84Nm

Torque capacity : 5850Nm

Width : 115mm

Overrunning speed : 300 r/min

Contact Now

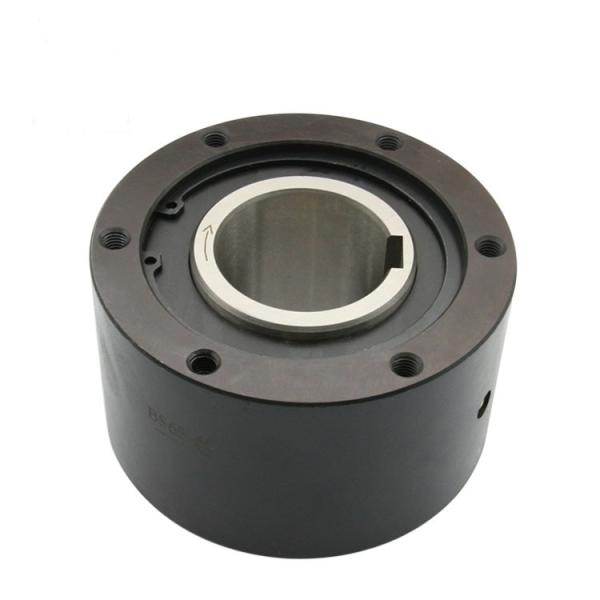

BS85 BS 85 Freewheel Backstop One-Way Clutch Bearing

Product Description

Features of BS one-way clutch bearing

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).

Product name	Cam Clutch bearing
Model	BS85
Material	GCr15
Inner diameter	85mm
Outer diameter	210mm
Thickness	115mm
Torque capacity	5850Nm
Overrunning speed	300r/min
Application	low speed conveyor , bucket elevator
Package	Carton Box / Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	10-15 Days

BS65 BS75 BS85 BS95 BS110 Sprag Freewheels One Way Bearing Holdback Backstop Cam Clutch

Model	Torque	Max overrunning	Drag Torque (N-m)	A	B	C	PCD	E	S	H-M Size× Pitch ×No.of Tapped Holes
Model	Capacity (Nm)	(r/min) Inner race	Drag Torque (N-m)	A	B	C	D	E	S	H-M Size× Pitch ×No.of Tapped Holes
BS30	294	350	0.58	64	90	64	80	45	13	M 6 ×P1.0×4
BS50	784	300	0.98	67	125	67	110	70	16	M 8 ×P1.25×4
BS65	1570	340	3.92	90	160	85	140	90	20	M10 ×P1.5×6
BS75	2450	300	5.88	90	170	85	150	100	20	M10 ×P1.5×6
BS85	5880	300	7.84	115	210	110	185	115	30	M12 ×P1.75×6
BS95	7840	250	9.8	115	230	110	200	130	30	M14 ×P2.0× 6
BS110	10800	250	14.7	115	270	110	220	150	30	M16 ×P2.0× 6
BS135	15700	200	19.6	135	320	130	280	180	30	M16 ×P2.0× 8

BS65 BS75 BS85 BS95 BS110 Sprag Freewheels One Way Bearing Holdback Backstop Cam Clutch
