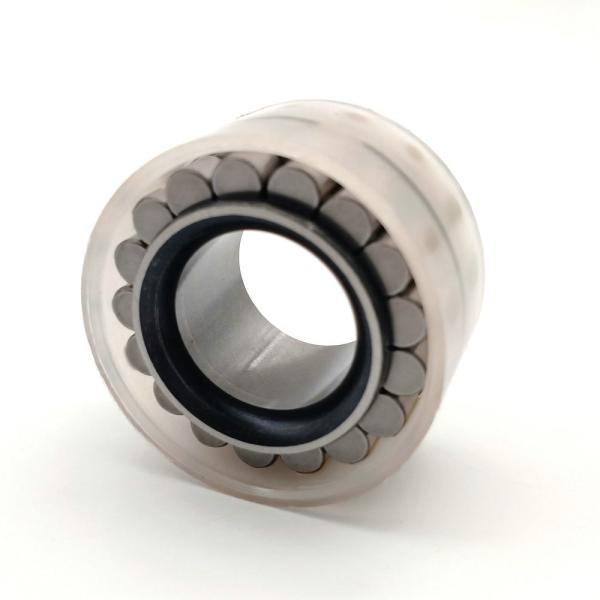

41.272x66x27 mm Radial Cylindrical Roller Bearing F-235793
Single row full complement cylindrical roller bearings Germany brand F-235793 Cylindrical Roller Bearing F-235793.NJ 41.272X66X27mm hydraulic pump bearing have solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
Product Selection of cylindrical roller bearing:
1. The cylindrical roller bearing is the combination of 2 machined and polished grooved raceways(inner&outer rings), guilding a number of appropriate cylindricalrollers as the rolling elements, with a cage or full complement.
2. This type bearings are designed to carry heavy radial loads at high speed.
3. Series: NU, NJ, NUPG,N, NN, NNU, NCF, NJG, NNCL, NNCF and so on.
4. Types: Single Row Caged CRB,Double Row Caged CRB, Multi-row Caged CRB, Singel Row Full Complement CRB,Double Row Full Complement CRB, Multi-row Full Complement CRB, and so on.
5. Cylindrical roller bearings with cage have high radialload carrying capacity, operating at high speed. Full compliment cylindricalroller bearings can accommodate even higher radial loads, but at low andmoderate speed.
Specification :
| Bearing No. | Weight(kg) | d(mm) | Dr(mm) | B(mm) |
| F-227932 | 0.12 | 20 | 36 | 30 |
| F-219593 | 0.144 | 25 | 42 | 30 |
| F-204045 | 0.27 | 30 | 49 | 34 |
| F-219590 | 0.28 | 35 | 55 | 36 |
| F-123243 | 0.4 | 45 | 66 | 40 |
| F-210408 | 0.46 | 50 | 72 | 40 |
| HS-262 | 0.86 | 55 | 83 | 46 |
| RNNX22AV | 0.895 | 60 | 86 | 46 |
| F-24*40.3*26 | 0.94 | 65 | 93 | 46 |
| RNN3005X3V | 1.12 | 70 | 100 | 54 |
| F-217615 | 1.35 | 75 | 107 | 54 |
| F-210304 | 1.8 | 80 | 116 | 60 |
| RNN306X3V | 1.85 | 85 | 121 | 60 |
| F-32*46.6*28 | 2.6 | 90 | 130 | 67 |
| F-208098 | 2.6 | 100 | 139 | 67 |
| RNN3007X3V | 3.95 | 110 | 156 | 80 |
| F-385328 | 4.52 | 120 | 167 | 80 |
| HS-263 | 6.7 | 130 | 183 | 95 |
| RNNX10V | 7.914 | 140 | 197 | 95 |
| F-237005 | 8.215 | 150 | 206 | 100 |
| F-229575.1 | 11.09 | 160 | 224 | 109 |
| 567079B | 15.6 | 170 | 242 | 122
|
