AL150 KEED2 One Way Roller Backstop Clutch Bearing Cam Freewheel Clutch Bearing

Product Categories
Shaanxi Fortune Industries Co.ltd
Contact Now

AL150 KEED2 One Way Roller Backstop Clutch Bearing Cam Freewheel Clutch Bearing

Brand Name : SFT

Model Number : AL150 KEED2

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Torque (Nm) : 43750

Material : Chrome steel

Vibration : ZV1, ZV2, ZV3, or as requested

Weight (Kg) : 500

Seals Type : Sealed

Product name : AL150 KEED2 One Way Roller Type Backstop Clutch

Contact Now

AL150 KEED2 One Way Roller Type Backstop Clutch Cam Freewheel Clutch Bearing

Product Description of AL150 KEED2 One Way Roller Type Backstop Clutch

Types AL..F2D2/F4D2 are roller type freewheels, self contained, sealed and bearing supported, using two

160.. series bearings. Units are delivered oil lubricated.

Primarily used as overrunning or indexing clutches, the cover combination is chosen according to the type

of drive, as shown overleaf. D2 cover is used to close the unit. It is equipped with two screws for oil filling,

drain and level. The shaft seal is a Vring type. Cover and seal have been designed to be oil proof with

minimum drag torque.

We recommend the unit is supplied assembled. Please specify inner race direction of rotation seen from

the D2 flange.

AL150 KEED2 One Way Roller Backstop Clutch Bearing Cam Freewheel Clutch Bearing

Technical Datas

Item AL..KEED2
Material GCr15
Bore dia. 12-320 mm
Outer dia. 62-610 mm
Width (L8) 90-868 mm
Torque capacity 55-250000 N.m
Weight 3-1725 kg
Package Carton box, wooden box or as your requirements

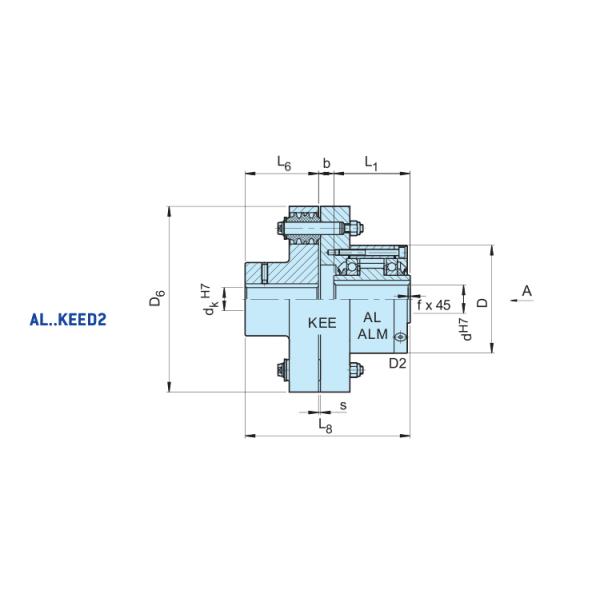

Dimension and Capacity

AL150 KEED2 One Way Roller Backstop Clutch Bearing Cam Freewheel Clutch Bearing

Type Size

Overrunning

speed

 Weight
AL..KEED2 dH7 KEE TKN nimax1) namax2) dKH7 D L1 D6 L6 L8 b s f
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
12 2 55 2500 6000 12…25 62 42 97 35 90 13 3 0.5 3
15 3 122 1900 6000 16…30 68 52 112 40 110 18 3 0.8 4.4
20 3 122 1600 5600 16…30 75 57 112 40 114.5 17.5 3 0.8 4.6
25 4 288 1400 4500 20…40 90 60 130 50 137.5 17.5 3 1 6.4
30 5 500 1300 4100 20…50 100 68 160 60 148 20 2 1 11
35 6 725 1100 3800 25…65 110 74 190 75 168 19 2 1 17
40 6 1025 950 3400 25…65 125 86 190 75 178 17 2 1.5 19
45 6 1050 900 3200 25…65 130 86 190 75 178 17 2 1.5 19
50 7 1750 850 2800 30…75 150 92 225 90 207 25 2.5 1.5 31
55 8 2625 720 2650 35…90 160 104 270 100 233.5 29.5 3 2 47
60 8 2750 680 2450 35…90 170 114 270 100 244 30 3 2 49
70 10 5750 580 2150 45…110 190 134 340 140 312.5 38.5 3 2.5 90
80 11 8500 480 1900 55…125 210 144 380 160 340 36 3 2.5 107
90 12 13750 380 1700 65…140 230 158 440 180 388 50 3.5 3 170
100 14 20000 350 1450 75…160 270 182 500 200 422.5 40.5 3.5 3 230
120 16 30000 250 1250 85….180 310 202 560 220 471 49 4 3 330
150 18 43750 180 980 95…200 400 246 640 250 543 47 4 4 500
200 22 97500 120 750 125…250 520 326 880 320 700.5 54.5 4.5 5 965
250 28 250000 100 620 160…320 610 396 1160 400 868 72 5 5 1725
ALM..KEED2 25 4 288 1100 2800 20…40 90 60 130 50 127.5 17.5 3 1 6.4
30 5 588 1000 2500 20…50 100 68 160 60 148 20 2 1 11
35 6 838 900 2400 25…65 110 74 190 75 168 19 2 1 17

AL150 KEED2 One Way Roller Backstop Clutch Bearing Cam Freewheel Clutch BearingAL150 KEED2 One Way Roller Backstop Clutch Bearing Cam Freewheel Clutch BearingAL150 KEED2 One Way Roller Backstop Clutch Bearing Cam Freewheel Clutch Bearing
